รายละเอียด:
Feature
-Solid cast iron construction throughout
-Spindie stop with micro-adjustable setting
-Chrome plated precisionground quill
-Table locks for high rigidity
-adjustable stops for accurate stops for cuts and repeatabilty
-Hardened ground column and knee slideways
-Heavy-duty saddle supports full width of table
-High precision ground vertcal and cross ways
-Head tilts to 90ํ both ways. 360ํ rotation on horizontal surface
-PS: The scrap technology is considered as the fundamental of the accuracy of precision machine tools.
-Class 7 spindle bearings
-Lower noise and convenient operation
-Adjustable travel stops on X,Y,Z
-Fold up safety handles
-Dovetail ways X,Y,Z
-Adjustable gibs on table
-Fine down feed on quill
-Work lamp
-Scrapping technology X,Y,Z

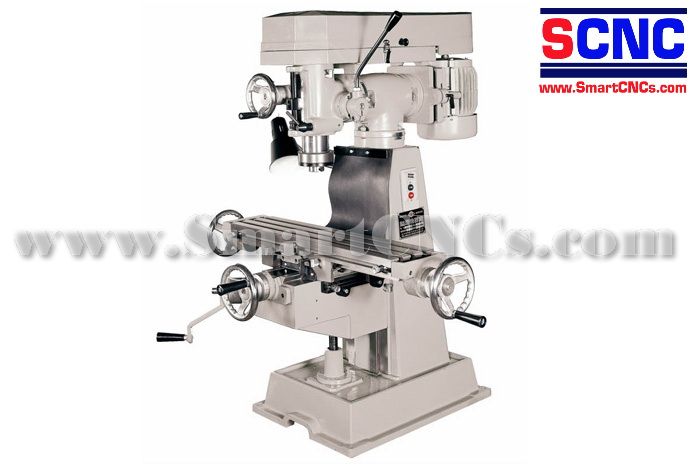

Industrial milling machines
-
Adjustable travel stops on X, Y, & Z.
-
Fold up safety handles.
-
Head tilts to 90° both ways. 360° rotation on horizontal surface.
-
Lower noise and convenient operation.
-
Table locks for high rigidity.
-
Solid cast iron construction throughout machine.
-
Spindle stop with micro-adjustable setting.
-
High precision ground vertical and cross ways.
This machine compared to other similar products belongs to high quality level.
Specifications
|
SPINDLE TAPER |
MT3 orR8 orNT30 |
|
SPINDLE MAX.TRAVEL |
3"(75mm) |
|
SPINDLE SPEED |
230-2500 RMP(9 speeds) |
|
DISTANCE,SPINDLE TO TABLE SURFACE(Z) |
0"0-13-3/4"(0-345mm) |
|
SIZE OF WORKINGTABLE |
6"*26"(152*600mm)
|
|
T-SLOTSIZE(NUMBER) |
3/8"(3slots)
|
|
MAXIMUM LONGITUDINALTRAVEL(X) |
14-1/2"(370mm) |
|
MAXIMUM CROS TRAVEL(Y) |
6"(150mm) |
|
DISTANCE,VERTICALTRAVEL OFTABLE(Z) |
14-3/4"(325mm) |
|
SWING |
6.1"(155mm) |
|
LEADSCREW FOR DRILL CHUCK |
1"*8TPI or3mm PITCH |
|
VERTICAL HEAD TILT ANGLE(RandL) |
90 |
|
RAM SWIVELING ANGLE
|
360 |
|
MOTOR |
2HP/3PH
|
|
NET WEIGHT(APPROX) |
260KGS |
|
SHIPWEIGHT(APPROX) |
1set 360 kgs/2set
620 kgs
|
|
PACKING(1SET)
PACKING(2SET)
|
40"*42"*58"
42"*44-1/2"*58"
|
|
Serial No.
|
Item Description
|
|
Suitable for Models
|
|
S/N:3355127
|
Hydraulic vice HMS 125
|
|
|
|
S/N:3354000
|
Kit of parallel packing plates,18-pcs.
|
|
|
|
|
Kit of parallel packing plates,20-pcs.
|
|
|
|
S/N:3356155
|
Height adjustable tailstock RST1
|
|
|
|
S/N:3356150
|
Horizontal-vertical circular dividing table RT150 |
|
|
|
S/N3352094 |
Collet chuck kit MT 4/M12 |
 |
MB 4 P |
|
S/N:3386200
|
End mill kit HSS 20-pcs |
|
|
|
S/N:3354120 |
Precision vice FMSN 125 |
 |
MB 4 P |
|
S/N:3352017 |
Clamping tool kit SPW 12 |
 |
MB 4 P |
