รายละเอียด:
Feature
-Solid cast iron construction throughout
-Spindie stop with micro-adjustable setting
-Chrome plated precisionground quill
-Table locks for high rigidity
-Hardened ground column and knee slideways
-Heavy-duty saddle supports full width of table
-High precision ground vertical and cross ways
-Class 7 spindle bearings
-Lower noise and convenient operation
-Adjustable travel stops on X,Y,Z
-Head slides in and out, swivels, and tilts left-right, enabling extremely versatile operations(830I-A2)
-Scrapping technology X,Y,Z PS:The scrap technology is considered as the fundamental of the accuracy of precision machine tools.
-Dovetail ways X,Y,Z
-Adjustable gibs on quill
-Work lamp
-Head tilt to 90ํ both ways. 360ํ rotation on horizontal surface
-Adjustable table stops for accurate stops forcuts and repeatability
-Variable speed frequency drive allows speeds from 200 to 2250 RPM
-Turret-style column(830I-A2)
-Forward/Reversing switch with emergency stop
-Fold up safety handles

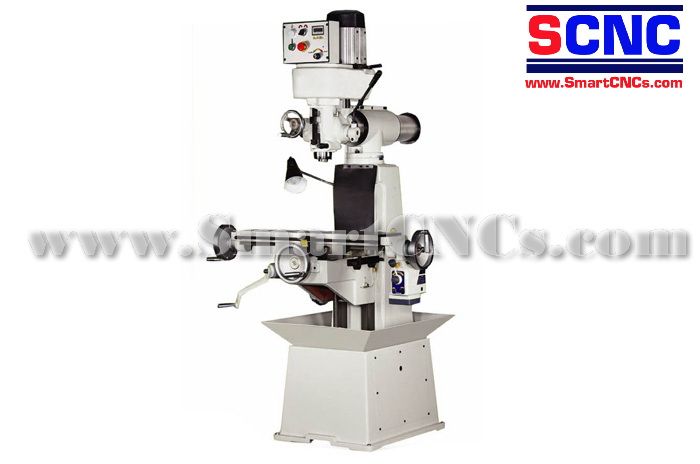

Turret Milling Machine for Sale
-
1-1/2 HP, 220V, three-phase motor.
-
Head slides in and out, swivels, and tilts left-to-right, enabling extremely versatile operations.
-
Variable speed frequency drive allows speeds from 200 to 2250 RPM.
-
Runs on single-phase power.
-
Features hardened and precision ground leadscrews, dovetail ways, turret-style column, and fine downfeed on quill.
-
Convenient one-shot lubrication system.
-
Cast iron construction throughout turret milling machines.
Specifications
|
SPINDLE TAPER |
MT3 orR8 orNT30 |
|
SPINDLE MAX.TRAVEL |
3-1/2"(88.9mm) |
|
SPINDLE SPEED |
200-2250
RMP(Inverter)
|
|
DISTANCE,SPINDLE TO TABLE SURFACE(Z) |
24"-20.4"(62-520mm) |
|
SIZE OF WORKINGTABLE |
8"*30"(205*760mm)
|
|
T-SLOTSIZE(NUMBER) |
3/8"(3slots)
|
|
MAXIMUM LONGITUDINALTRAVEL(X) |
18-1/2"(470mm) |
|
MAXIMUM CROS TRAVEL(Y) |
8"(200mm) |
|
DISTANCE,VERTICALTRAVEL OFTABLE(Z) |
18.1"(460mm) |
|
SWING |
6.5"-18"(165-457mm) |
|
LEADSCREW FOR DRILL CHUCK |
1"*8TPI or3mm PITCH |
|
VERTICAL HEAD TILT ANGLE(RandL) |
90 |
|
RAM SWIVELING ANGLE
|
360 |
|
MOTOR |
2HP/3PH
|
|
NET WEIGHT(APPROX) |
500KGS |
|
SHIPWEIGHT(APPROX) |
1set 600 kgs/2set
1150 kgs
|
|
PACKING(1SET)
PACKING(2SET)
|
44"*44"*83"
44 1/2"*56"*83"
|
|
Serial No.
|
Item Description
|
|
Suitable for Models
|
|
S/N:3355127
|
Hydraulic vice HMS 125
|
|
|
|
S/N:3354000
|
Kit of parallel packing plates,18-pcs.
|
|
|
|
|
Kit of parallel packing plates,20-pcs.
|
|
|
|
S/N:3356155
|
Height adjustable tailstock RST1
|
|
|
|
S/N:3356150
|
Horizontal-vertical circular dividing table RT150 |
|
|
|
S/N3352094 |
Collet chuck kit MT 4/M12 |
 |
MB 4 P |
|
S/N:3386200
|
End mill kit HSS 20-pcs |
|
|
|
S/N:3354120 |
Precision vice FMSN 125 |
 |
MB 4 P |
|
S/N:3352017 |
Clamping tool kit SPW 12 |
 |
MB 4 P |
