ดีซี เซอร์โว ไดรฟ์เวอร์ รุ่น CD420 4-15A

~~฿2.00~~ ฿1

ราคายังไม่รวมภาษี 7% IntroductionThe DCS810 is a digital DC servo driver developed with DSP and high efficient MOSFET technologies. In position control, it\\\\\\\'s easy for

จำนวน

เหลือ 5 ชิ้น

ซื้อเลย

หยิบลงตะกร้า

หมวดหมู่ : เซอร์โวมอเตอร์ และไดร์ฟ
รหัสสินค้า : 000091

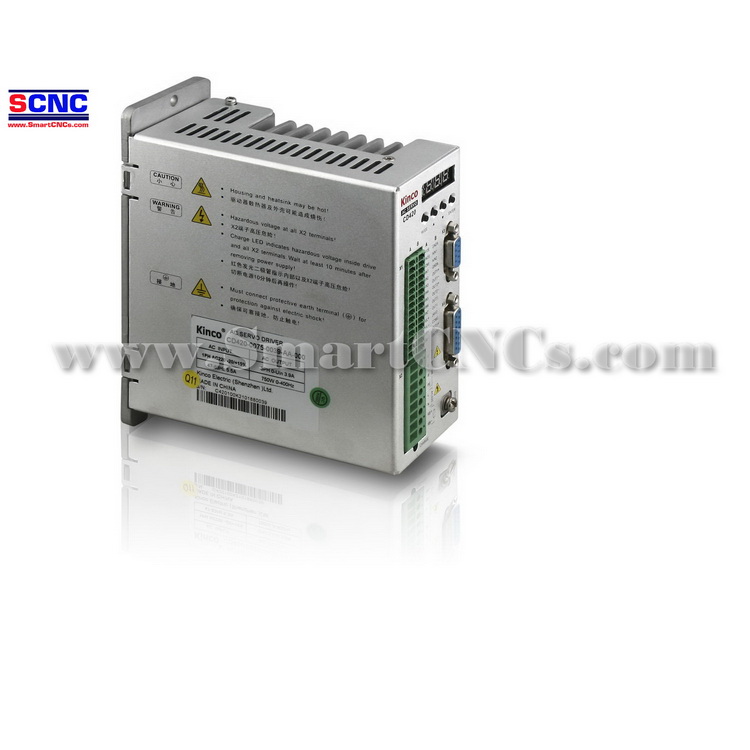

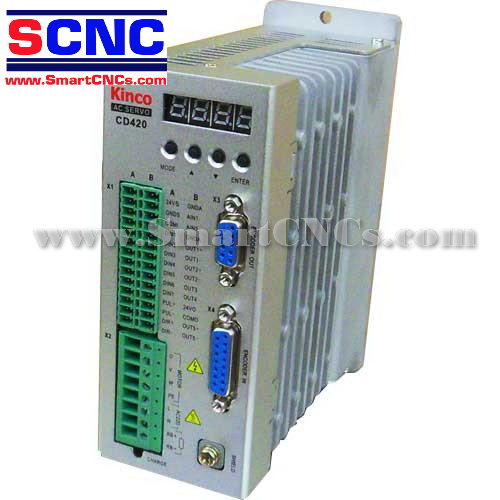

รายละเอียดสินค้า ดีซี เซอร์โว ไดรฟ์เวอร์ รุ่น CD420 4-15A

ราคายังไม่รวมภาษีมูลค่าเพิ่ม 7%

ราคายังไม่รวมค่าจัดส่ง EMS 80 บาท

Model parameter		CD420-AA-000

Power	Main supply voltage	Single-phase AC220V±20% 47~63Hz
	Control circuit voltage	DC24V 1A
Current	Rated current(RMS)	4A
	Peak current(PEAK)	15A
Feedback signal		2500PPR (incremental encoder with 5V )
Brake chopper		Use an external braking resistor if necessary
Brake chopper threshold		DC380V±5V
Over-voltage alarming threshold		DC400V±5V
Under-voltage alarming threshold		DC200V±5V
Cooling method		Natural air cooling
Weight		1.2kg
Position Mode	Max. frequency of input pulse	Differential signal: 500KPPS, Open-collector signal: 200KPPS
	Pulse command mode	Pulse+direction, CCW+CW, (higher voltages than 5V need external current limiting resistors)(do not support A+B phase)
	Command smoothing	Low-pass filtering(Adjustable by internal parameters)
	Feedforward gain	Adjustable by internal parameters
	Electronic gear ratio	Setting range, Gear factor: -32768~32767, Gear divider: 1~32767, 1/50≤\|Gear factor/Gear divider\|≤50
	Position loop sampling frequency	1KHz
Speed Mode	Analog input voltage range	0 ~±10V(Resolution 12bit)
	Input impedance	200K
	Analog input sampling frequency	4KHz
	Command source	External analog command/iAdjustable by internal parameters
	Command smoothing	Low-pass filtering(Adjustable by internal parameters)
	Input voltage dead-zone setting	Adjustable by internal parameters
	Input voltage offset settiong	Adjustable by internal parameters
	Speed limit	Adjustable by internal parameters
	Torque limit	Adjustable by internal parameters / External analog command control
	Speed loop sampling frequency	4KHz
Torque Mode	Analog voltage input range	0 ~±10V (Resolution 12bit)
	Input impedance	200K
	Input sampling frequency	4KHz
	Command source	External analog command/internal command
	Command smoothing	Low-pass filtering(Adjustable by internal parameters)
	Speed limit	Adjustable by internal parameters/External analog command control
	Input voltage dead-zone setting	Adjustable by internal parameters
	Input voltage offset setting	Adjustable by internal parameters
	Current sampling frequency	16KHz
Digital Input	Input specification	7 digital inputs, with COM1 terminal for PNP or NPN connection.
	Input function	Define freely according to requirement, supporting following functions: Driver enable,driver fault reset,driver mode control,Proportional control, forward inhibit limit, reverse inhibit limit, negative limit position,home signal, speed command reverse, internal speed or position select
Digital Onput	Output specification	5 digital outputs,OUT1～OUT4 current is 100mA,OUT5 current is 800mA
	Output function	Define freely according to requirement, supporting following functions: Driver ready, driver fault, position reached, motor at zero speed, motor brake, motor speed reached, N signal
Protection functions		Over-voltage protection,under-voltage protection,motor over-heat protection(I²T),short-circuit protection,drive over-heat protection,etc.
Communication interface		RS232
Operation Environment	Operating temperature	0~40℃
	Storage temperature	-10℃~70℃
	Humidity(non-condensing)	5~95%
	Protection class	IP20
	Installation environment	Installed in a dust-free,dry and lockable environment(such as in a electrical cabinet)
	Installation mode	Vertical installation
	Altitude	Below 1000m
	Atmospheric pressure	86kpa~106kpa

File name	File type	Format	Datetime
Kinco Products Catalog	Product catalog	zip	2014-12-11
3D model for CD420	3D model	rar	2014-06-18
Russian Kinco CD Series Servo Usermanual	User manual		2013-11-01
Russian Kinco CD/CD2 Series Servo Catalog	Product catalog	zip	2013-11-01
CD Series Servo user Manual	User manual	zip	2013-08-30
CE Certificate of K3 PLC，ED servo and stepper	Certification and others	rar	2012-07-12
