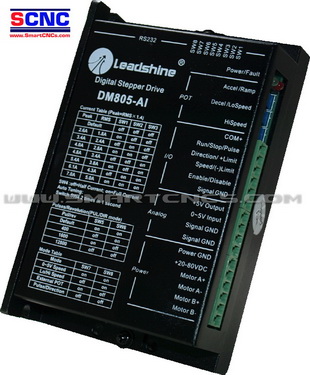

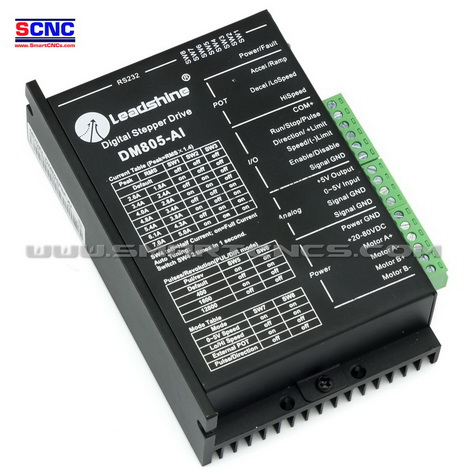

เสต็ปไดร์เวอร์ รุ่น DM805-AI ขับกระแสสูง 0.5A to 7.0A
รายละเอียดสินค้า เสต็ปไดร์เวอร์ รุ่น DM805-AI ขับกระแสสูง 0.5A to 7.0A
รุ่น DM805-AI (ยังไม่รวมภาษีและค่าจัดส่ง)
- รับประกันสินค้า 1 ปี
- ค่าจัดส่ง EMS 60 บาท
- ราคารวมภาษี 7% และค่าส่ง EMS แล้ว
Features
- Extra-low motor noise offers excellent quietness
- Analog signal (0-5V) for speed control
- Step & direction control signals also acceptable
- Internal step generator for no motion controller system
- Built-in +5V output for an analog control and testing
- Built-in potentiometers for speed, acceleration and deceleration adjusting
- Limit signal input for safe operation
- Anti-resonance and low-speed ripple smoothing
- Supply voltage up to +80 VDC
- Output current programmable, from 0.5A to 7.0A
Description
The DM805-AI featured in supporting 0-5V analog signal for speed controls. Like other DM series drives, it brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers on the markets. Its unique features make the DM805-AI an ideal solution for applications that require low-speed smoothness.
Not only implemented in traditional stepper systems for positioning controls, the DM805-AI has also been adopted in OEM applications for speed controls. In many applicaitons, Leadshine clients successfully implemented DM805-AI for speed controls, especially in low-speed applications to replace brushless DC motors plus planetary gearboxes.
The three built-in potentiometers are used to preset and adjust the velocity, acceleration and deceleration. In 0-5V speed mode, the motor speed is controllable and follows the analog 0-5V input. In high/low speed mode, the motor speed is selected by digital input and adjusted by the high/low speed potentiometers. The user can run the motor with the least configuration and connection. In position mode, the DM805-AI is a traditional stepper drive. There is a 5V power supply output for customer use.
* Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.
Specifications
General
Electrical Specifications
|
Parameter |
Min |
Typical |
Max |
Unit |
|
Input Voltage |
18 |
60 |
80 |
VDC |
|
Pulse Input Frequency |
0 |
- |
200 |
kHz |
|
Logic Signal Current |
7 |
10 |
16 |
mA |
|
IsolationResistance |
500 |
- |
- |
MΩ |
Velocity Control
|
Item |
Specification |
Dead Band |
Resolution |
Min |
Max |
|
|
Analog Input |
0-5V Speed Mode |
0-5 V |
10 mV |
10 mV |
0 Rev/s |
25 ± 0.5 Rev/s |
|
External POT Mode |
20 mV |
|||||
|
Accel / Decel / Ramp Potentiometer |
0-25 turns |
10 mV |
10 mV |
0.5 Rev/s2 |
250 ± 1Rev/s2 |
|
|
LoSpeed Potentiometer |
0-25 turns |
10 mV |
10 mV |
0 Rev/s |
5 ± 0.01Rev/s |
|
|
HiSpeed Potentiometer |
0-25 turns |
10 mV |
10 mV |
0 Rev/s |
25 ± 0.5 Rev/s |
|
Operating Environment
|
Cooling |
Natural Cooling or Forced cooling |
|
|
Operating Environment |
Environment |
Avoid dust, oil fog and corrosive gases |
|
Storage Temperature |
-20 °C － 65 °C (-4°F － 149 °F ) |
|
|
Ambient Temperature |
0°C－ 50 °C (32 °F－ 122°F) |
|
|
Humidity |
40%RH － 90%RH |
|
|
Operating Temperature (Heat Sink) |
70 °C (158 °F) Max |
|
|
Vibration |
10-55Hz, 0.15mm/s |
|
|
Storage Temperature |
-20 °C－ 65 °C (-4 °F－ 149 °F ) |
|
|
Digital I/O Signal Connector |
|||
|
6-pin screw terminal, 3.81 mm space |
|||
|
Pin |
Name |
I/O |
Description |
|
1 |
COM+ |
Power |
+5V Power Input, common reference of all inputs |
|
2 |
Run/Stop/Pulse |
I |
Run/Stop signal for 0-5V analog, Lo/Hi Speed and External POT mode. In Pulse/Direction mode, it accepts pulse input. |
|
3 |
Direction / +Limit |
I |
Direction input for 0-5V analog, Lo/Hi Speed and Pulse/Direction mode. It is the +limit switch input in External POT mode. When +Limit is activated, the motor speed decelerates to zero in the acceleration set by Ramp potentiometer. The +Limit is only activated when the voltage applied to 0-5V input is 2.5-5V. |
|
4 |
Speed / (-)Limit |
I |
Speed selection input in Lo/Hi speed mode. It is the -limit switch input in External POT and 0-5V Speed mode. When +Limit is activated, the motor speed decelerates to zero in the acceleration set by Ramp potentiometer. In External POT mode, the –Limit is activated only when the voltage applied to 0-5V input is 0-2.5V. In 0-5V speed mode, the –Limit is activated only when Direction input is connected to Signal GND. |
|
5 |
Enable / Disable |
I |
This signal is used to enable or disable the power stage. Usually left it unconnected to enable the power stage. |
|
6 |
Signal GND |
GND |
Signal ground. It is common with the power ground. |
|
Analog Signal Connector |
|||
|
4-pin screw terminal, 3.81 mm space |
|||
|
Pin |
Name |
I/O |
Description |
|
1 |
+5V Output |
O |
+5V Power Output, reference to signal ground |
|
2 |
0-5V Input |
I |
Analog 0-5V reference input |
|
3 |
Signal GND |
GND |
Signal ground. It is common with the power ground. |
|
4 |
Signal GND |
GND |
Signal ground. It is common with the power ground. |
|
Power Connector |
|||
|
6-pin screw terminal, 3.81 mm space |
|||
|
Pin |
Name |
I/O |
Description |
|
1 |
Power GND |
GND |
Power ground |
|
2 |
+20-80VDC |
I |
Power supply input, 24-72VDC recommended, leaving rooms for voltage fluctuation and back-EMF. |
|
3 |
Motor A+ |
O |
Motor Phase A+ |
|
4 |
Motor A- |
O |
Motor Phase A- |
|
5 |
Motor B+ |
O |
Motor Phase B+ |
|
6 |
Motor B- |
O |
Motor Phase B- |
Operating Modes
|
Mode |
SW7 |
SW8 |
Description |
|
0~5V Speed |
on |
on |
Analog 0-5V Speed Mode |
|
Lo/Hi Speed |
off |
on |
Low and High Speed Mode |
|
External POT |
on |
off |
External Potentiometer Speed Mode |
|
Pulse/Direction |
off |
off |
Pulse and Direction Position Mode |
Note: Can not change mode on-the-fly and need to repower the drive.
Current Settings
|
PEAK |
RMS |
SW1 |
SW2 |
SW3 |
|
Default |
Default |
off |
off |
off |
|
2.6A |
1.8A |
on |
off |
off |
|
3.4A |
2.8A |
off |
on |
off |
|
4.0A |
2.4A |
on |
on |
off |
|
4.8A |
3.4A |
off |
off |
on |
|
5.4A |
3.8A |
on |
off |
on |
|
6.1A |
4.3A |
off |
on |
on |
|
7.0A |
5.0A |
on |
on |
on |
Note: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.
Microstep Resolution
|
Pulses/Rev. |
SW5 |
SW6 |
|
Default |
on |
on |
|
400 |
off |
on |
|
1600 |
on |
off |
|
12800 |
off |
off |
0-5V Speed Mode Low/High Speed Mode
External POT Mode Pulse/Direction Mode
Mechanical
Applications
Not only implemented in traditional stepper systems for positioning controls, the DM805-AI has also been adopted in OEM applications for speed controls. In many applicaitons, Leadshine clients successfully implemented DM805-AI for speed controls, especially in low-speed applications to replace brushless DC motors plus planetary gearboxes.
